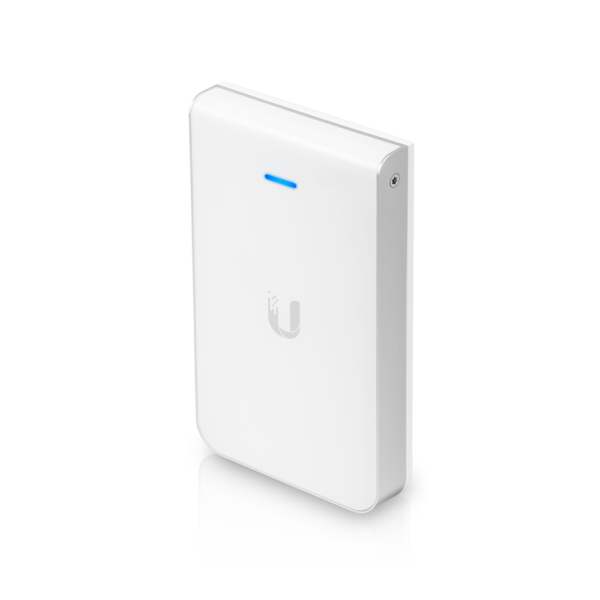

11ac 4×4 MIMO access point with 4-port Gigabit Ethernet switch for high-density environments. Fits into wall outlet.

The UniFi IW HD AP has a refined industrial design and can be easily installed using the included mounting hardware. Easily accessible through any standard web browser and the UniFi app (iOS or AndroidTM), the UniFi Controller software is a powerful software engine ideal for high-density client deployments requiring low latency and high uptime performance.

Features:

- - 4×4 MU-MIMO on 5GHz (1733Mbps max PHY rate), 2×2 MIMO on 2.4GHz (300Mbps max PHY rate)
  - 802.3af for base functionality. 802.3at required if using PoE passthrough
  - 1×4 (1 in, 4 out) switched Gigabit Ethernet ports with configurable PoE passthrough (port 1 only)

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “UniFi In-Wall HD Access Point”

Shipping & Delivery

SPECIFICATIONS

UAP-IW-HD
Dimensions	139.7 x 86.7 x 25.75 mm (5.5 x 3.41 x 1.01")
Weight	210 g (7.41 oz)
Networking Interface	(5) 10/100/1000 Ethernet Ports
Buttons	Reset
Power Method	802.3af PoE 802.3at PoE+
Supported Voltage Range	44 to 57VDC
Power Supply	UniFi Switch (PoE)
PoE Out	48V Passthrough (Pins +1, 2; -3, 6)
Power Save	Supported
Beamforming	Supported
Maximum Power Consumption with PoE Passthrough	11W 23W (^* Requires 802.3at PoE+ switch)
TX Power 2.4 GHz 5 GHz	23 dBm 26 dBm
Dual-Band Antennas	(2) Single-Port, Single-Polarity Dual-Band Antennas, 2.4 GHz: 1.8 dBi Each, 5 GHz: 3.4 dBi Each
Single-Band Antennas	(2) Single-Port, Dual-Polarity, Single-Band Antennas, 5 GHz: 6 dBi Each
Wi-Fi Standards	802.11 a/b/g/n/r/k/v/ac/ac-wave2
Wireless Security	WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES), 802.11w/PMF
BSSID	Up to 8 per Radio
Mounting	1-Gang Electrical Wall Box (Not Included)
Operating Temperature	-10 to 60° C (14 to 140° F)
Operating Humidity	5 to 95% Noncondensing
Certifications	CE, FCC, IC
ADVANCED TRAFFIC MANAGEMENT
VLAN	802.1Q
Advanced QoS	Per-User Rate Limiting
Guest Traffic Isolation	Supported
WMM	Voice, Video, Best Effort, and Background
Concurrent Clients	200+
SUPPORTED DATA RATES (MBPS)
802.11a	6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n	6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac	6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80) 58 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 160)
802.11b	1, 2, 5.5, 11 Mbps
802.11g	6, 9, 12, 18, 24, 36, 48, 54 Mbps
