Simultaneous, dual-band, 3×3 MIMO technology, 802.11ac dual-band access point, capable of speeds of up to 1750 Mbps.

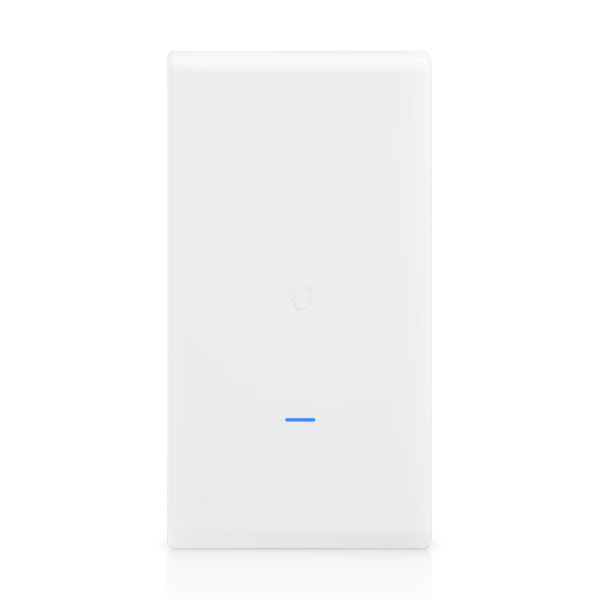

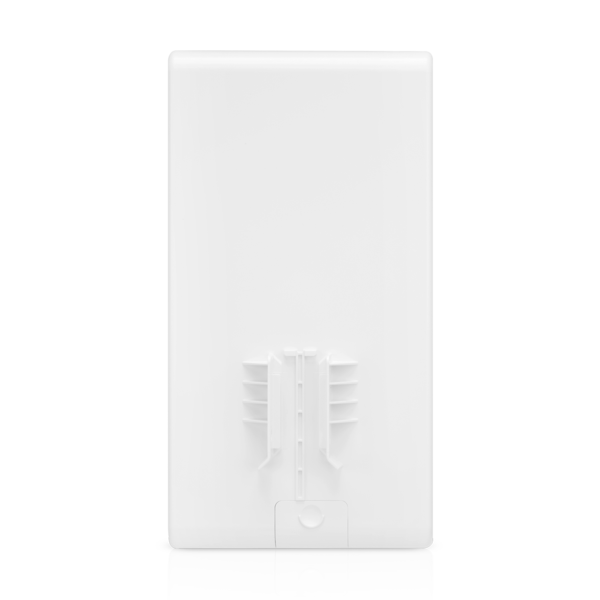

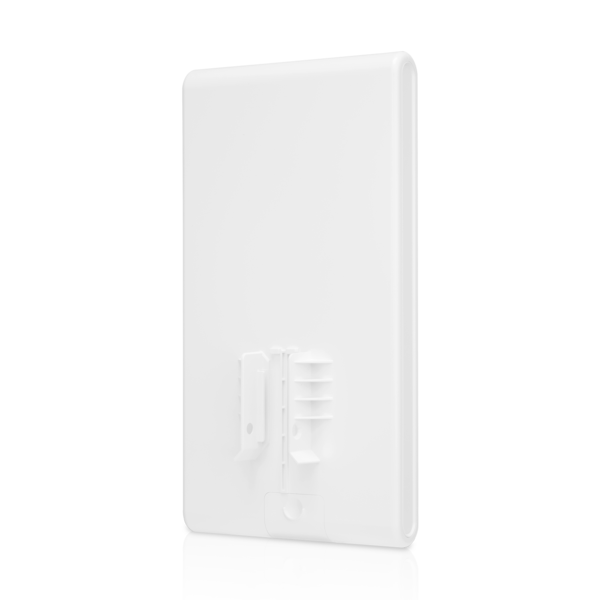

Expand your Wi-Fi network outdoors with the UniFi® AC Mesh Pro Access Point, part of the Ubiquiti Networks® UniFi Enterprise Wi-Fi System. The UAP-AC-M-PRO is a high-performance, outdoor, 3×3 MIMO, 802.11ac dual-band access point, capable of speeds of up to 1750 Mbps. It features a proprietary, MIMO-optimized, omni-directional Super Antenna for exceptional 360° coverage, providing symmetrical long-range communications of up to 183 meters.

Works with UniFi Network Controller

Manage your networks from a single interface.
Enjoy intuitive configuration options, as well as robust device control and monitoring.
Upgrade device firmware remotely.
Easily manage network users and guests.
Personalize the design, architecture, and privacy of guest hotspots.

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “UniFi Mesh PRO Access Point”

Shipping & Delivery

SPECIFICATIONS

UNIFI
Dimensions	343.2 x 181.2 x 60.2 mm (13.51 x 7.13 x 2.37")
Weight	633 g (1.40 lb)
Networking Interface	(2) 10/100/1000 Ethernet Ports
Ports	(2) 10/100/1000 Ethernet
Buttons	Reset
Antennas	3 Dualband antennas
Wi-Fi Standards	802.11a/b/g/n/ac
Power Method	802.3af PoE
Power Supply	PoE Injector 48VDC -0.5A Gigabit
Maximum Power Consumption	9W
Max TX Power	22 dBm
BSSID	Up to Four per Radio
Power Save	Supported
Wireless Security	WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
Certifications	CE, FCC, IC
Mounting	Wall/Pole (Pole Kit Included)
Operating Temperature	-40 to 70° C (-40 to 158° F)
Operating Humidity	5 to 95% Noncondensing
ADVANCED TRAFFIC MANAGEMENT
VLAN	802.1Q
Advanced QoS	Per-User Rate Limiting
Guest Traffic Isolation	Supported
WMM	Voice, Video, Best Effort, and Background
Concurrent Clients	100+
SUPPORTED DATA RATES (MBPS)
802.11a	6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n	6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40)
802.11ac	6.5 Mbps to 1300 Mbps (MCS0 - MCS9 NSS1/2/3, VHT 20/40/80)
802.11b	1, 2, 5.5, 11 Mbps
802.11g	6, 9, 12, 18, 24, 36, 48, 54 Mbps

-13%New

Click to enlarge

Previous product

UniFi In-Wall HD Access Point $189.00

Back to products

Next product

UniFi Mesh Access Point $229.00

UniFi Mesh PRO Access Point

Name: UniFi Mesh PRO Access Point
SKU: 90
Price: 329.00 USD
Availability: InStock

$329.00

Access Point

Compare

Add to wishlist

Category: Access Points

UNIFI
Dimensions	343.2 x 181.2 x 60.2 mm (13.51 x 7.13 x 2.37")
Weight	633 g (1.40 lb)
Networking Interface	(2) 10/100/1000 Ethernet Ports
Ports	(2) 10/100/1000 Ethernet
Buttons	Reset
Antennas	3 Dualband antennas
Wi-Fi Standards	802.11a/b/g/n/ac
Power Method	802.3af PoE
Power Supply	PoE Injector 48VDC -0.5A Gigabit
Maximum Power Consumption	9W
Max TX Power	22 dBm
BSSID	Up to Four per Radio
Power Save	Supported
Wireless Security	WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
Certifications	CE, FCC, IC
Mounting	Wall/Pole (Pole Kit Included)
Operating Temperature	-40 to 70° C (-40 to 158° F)
Operating Humidity	5 to 95% Noncondensing
ADVANCED TRAFFIC MANAGEMENT
VLAN	802.1Q
Advanced QoS	Per-User Rate Limiting
Guest Traffic Isolation	Supported
WMM	Voice, Video, Best Effort, and Background
Concurrent Clients	100+
SUPPORTED DATA RATES (MBPS)
802.11a	6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n	6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40)
802.11ac	6.5 Mbps to 1300 Mbps (MCS0 - MCS9 NSS1/2/3, VHT 20/40/80)
802.11b	1, 2, 5.5, 11 Mbps
802.11g	6, 9, 12, 18, 24, 36, 48, 54 Mbps
